OUTPUT AND RUNTIMES (MULTI-FUEL)

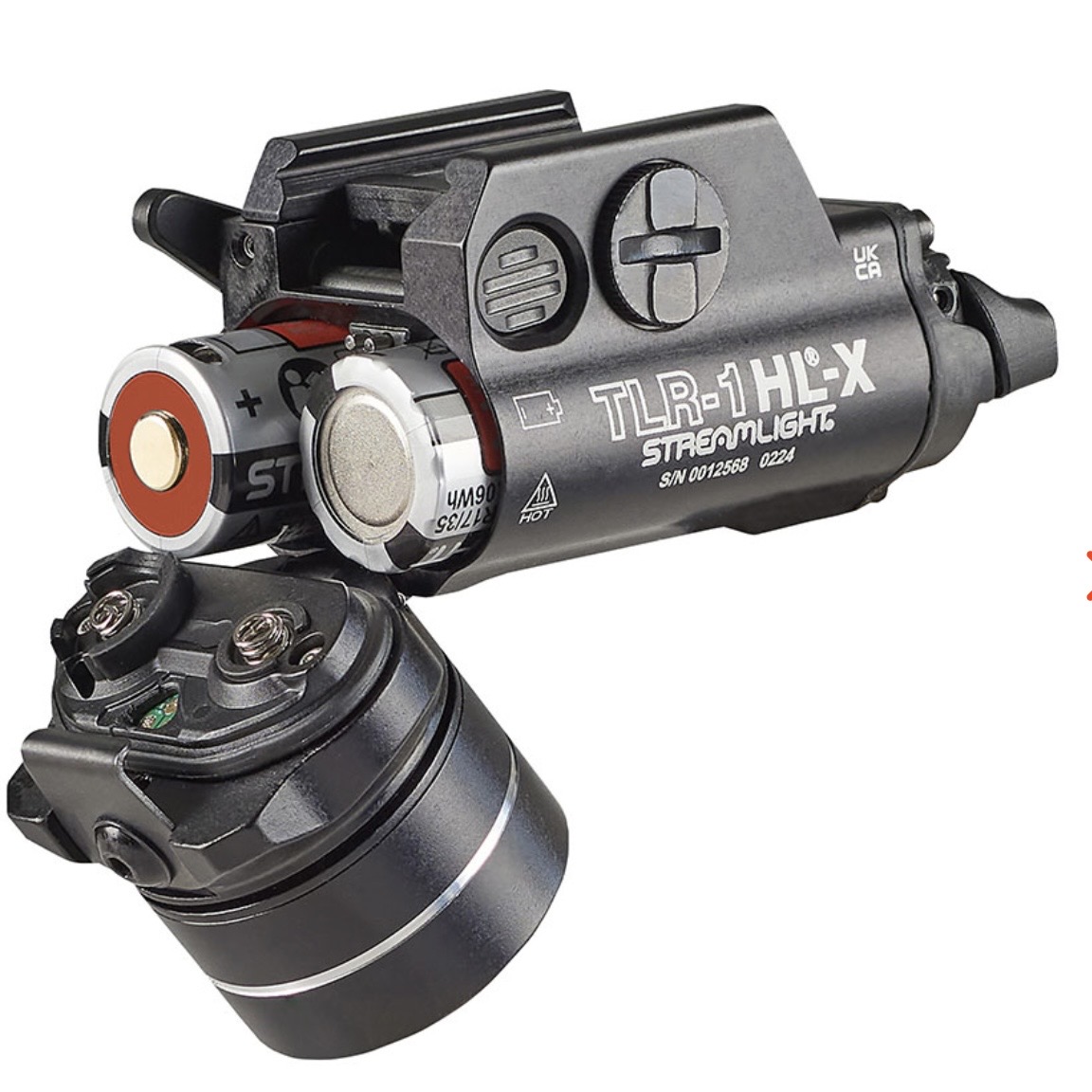

The full-sized TLR-1 HL-X uses a multi-fuel system. It can run on two included rechargeable battery packs or two standard disposable lithium batteries. Performance output scales dynamically based on the power source you use.

When using two Streamlight SL-B9 Lithium-Ion Rechargeable Batteries:

• Output: 1,500 Lumens

• Intensity: 20,000 Candela

• Beam Distance: 283 meters

• Runtime: 1 hour continuous (to 10% output level)

When using two standard CR123A Lithium Batteries:

• Output: 1,000 Lumens

• Intensity: 15,000 Candela

• Beam Distance: 245 meters

• Runtime: 1.5 hours (90 minutes) continuous (to 10% output level)

PHYSICAL DIMENSIONS AND WEIGHTS

• Length: 3.45 inches (8.76 cm)

• Width: 1.44 inches (3.66 cm)

• Height: 1.44 inches (3.66 cm)

• Weight with SL-B9 Batteries: 5.19 ounces (0.147 kg / 147.1 grams)

• Weight with CR123A Batteries: 4.94 ounces (0.140 kg / 140.1 grams)

CONSTRUCTION AND HARDWARE

• Body and Face Cap Material: 6000-series machined aircraft aluminum with a black anodized finish

• Switch Housing: Impact-resistant and chemical-resistant engineered polymer

• Lens: High-temperature, shock-mounted, impact-resistant Borofloat glass

• Optics: Custom engineered reflector producing a concentrated hot-spot beam with wide peripheral spill

• Light Source: White LED, impervious to shock with a 50,000-hour operational lifetime

• Switches: Ambidextrous rear paddle switches supporting momentary and constant-on activation

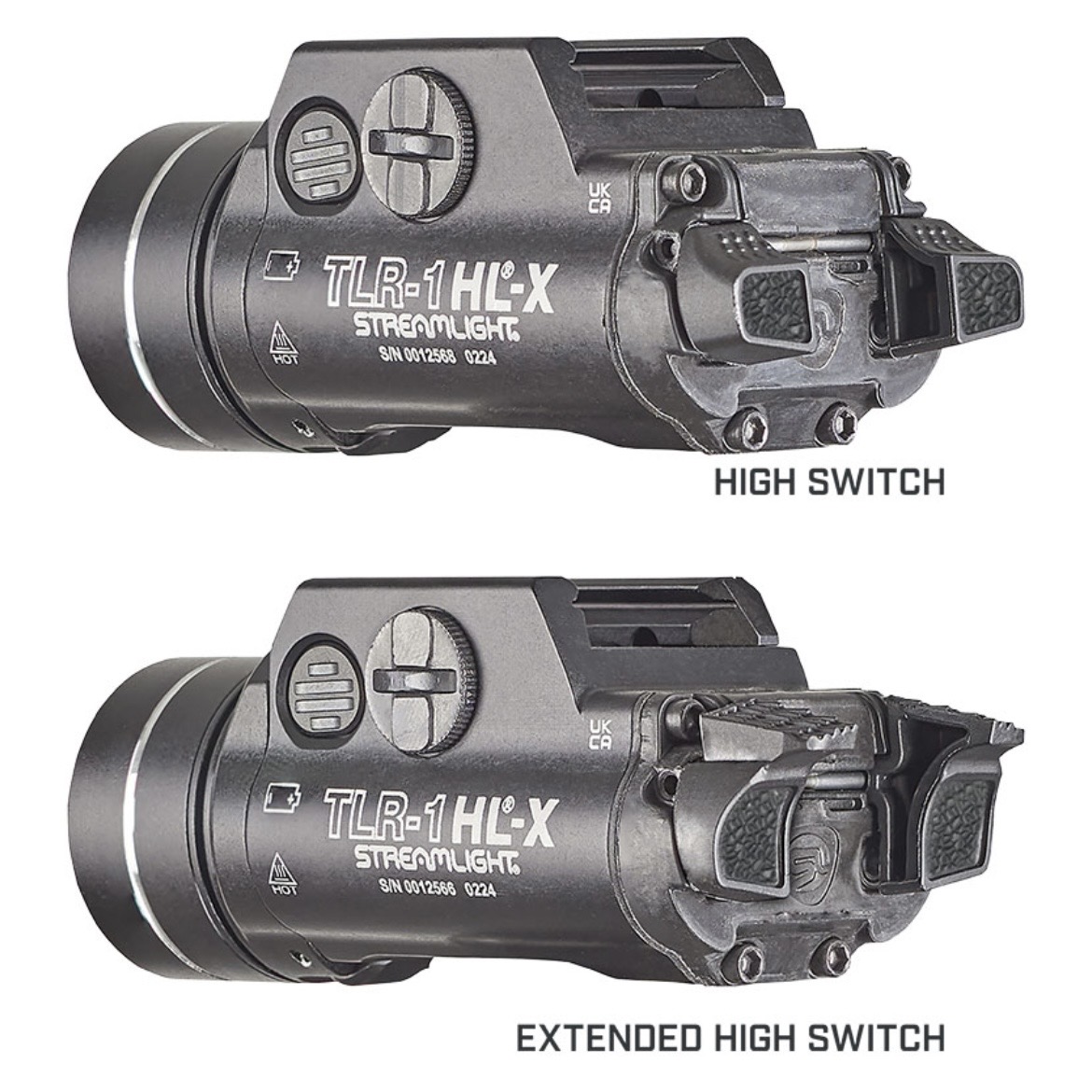

• Interchangeable Switches: Comes standard with interchangeable “High” and “Extended High” rear paddle switch options in the box

• Waterproof Rating: IPX7 rated (waterproof up to 1 meter depth for up to 30 minutes)

• Operating Temperatures: -4 to +120 degrees Fahrenheit with SL-B9 packs / -40 to +120 degrees Fahrenheit with CR123A batteries

MOUNTING AND INTERFACE

• Rail Compatibility: Direct attachment system securely mounts to a broad range of full-sized and compact railed weapons

• Rail Key Kit: Includes universal rail-locating keys to interface with Glock-style, Picatinny (MIL-STD-1913), Beretta 90two, S&W TSW, and SIG Sauer P320 rails

• Muzzle Safety: Toolless, one-handed snap-on and tighten mechanism allows attachment and detachment without putting hands in front of the firearm muzzle

• Holster Fit Warning: Due to the redesigned front-loading chassis and updated switch architecture, the TLR-1 HL-X has a different exterior profile than legacy TLR-1 HL models and requires dedicated HL-X specific holsters
