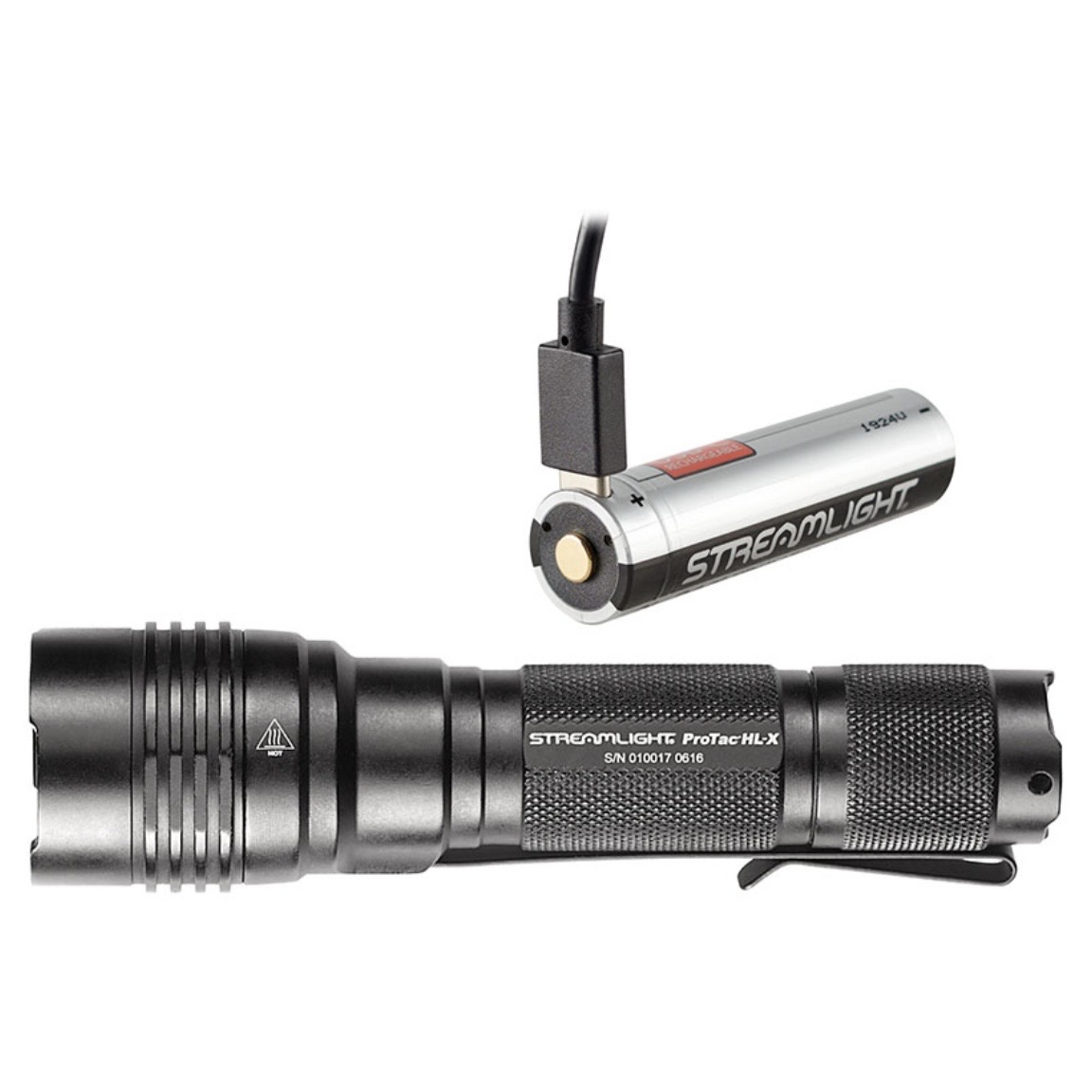

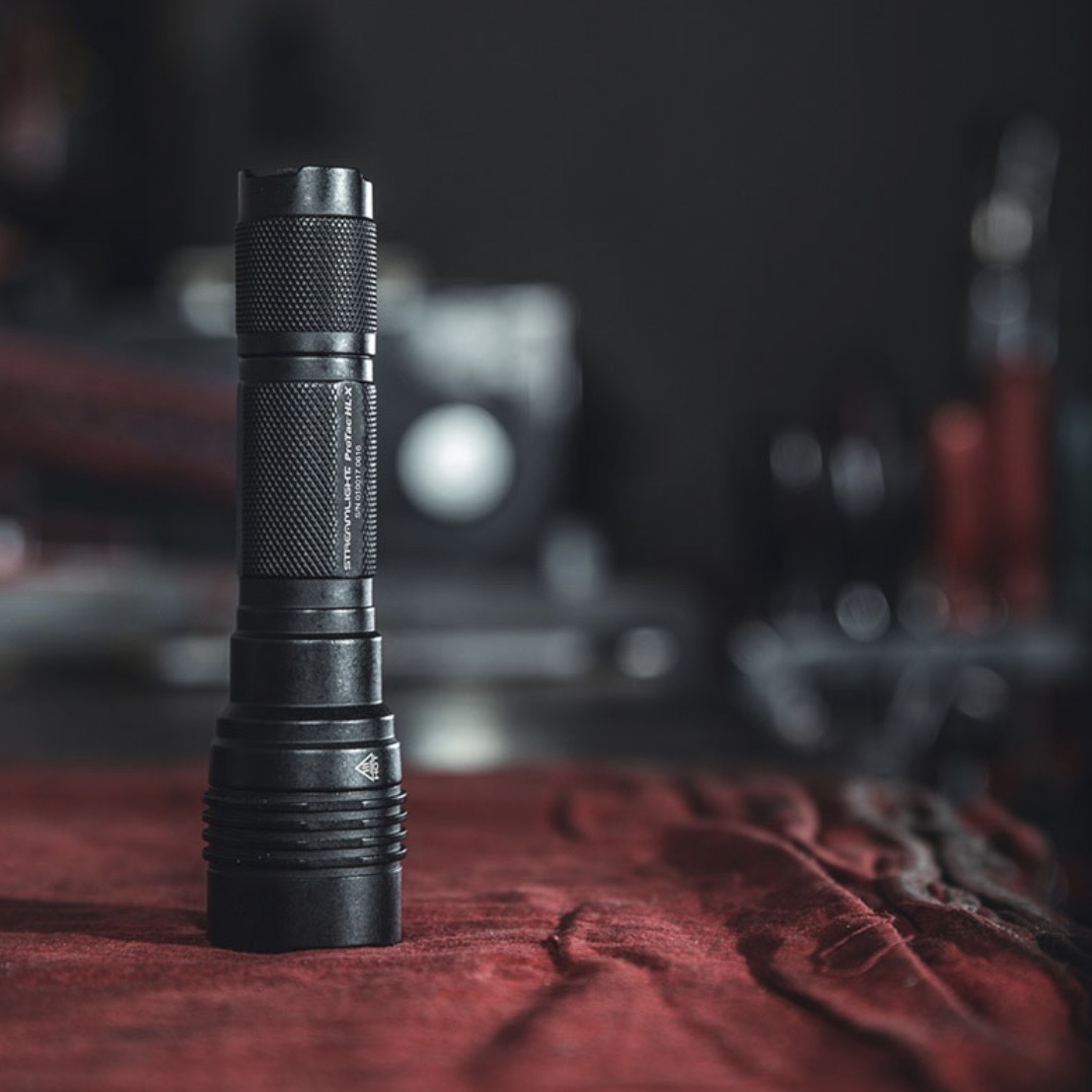

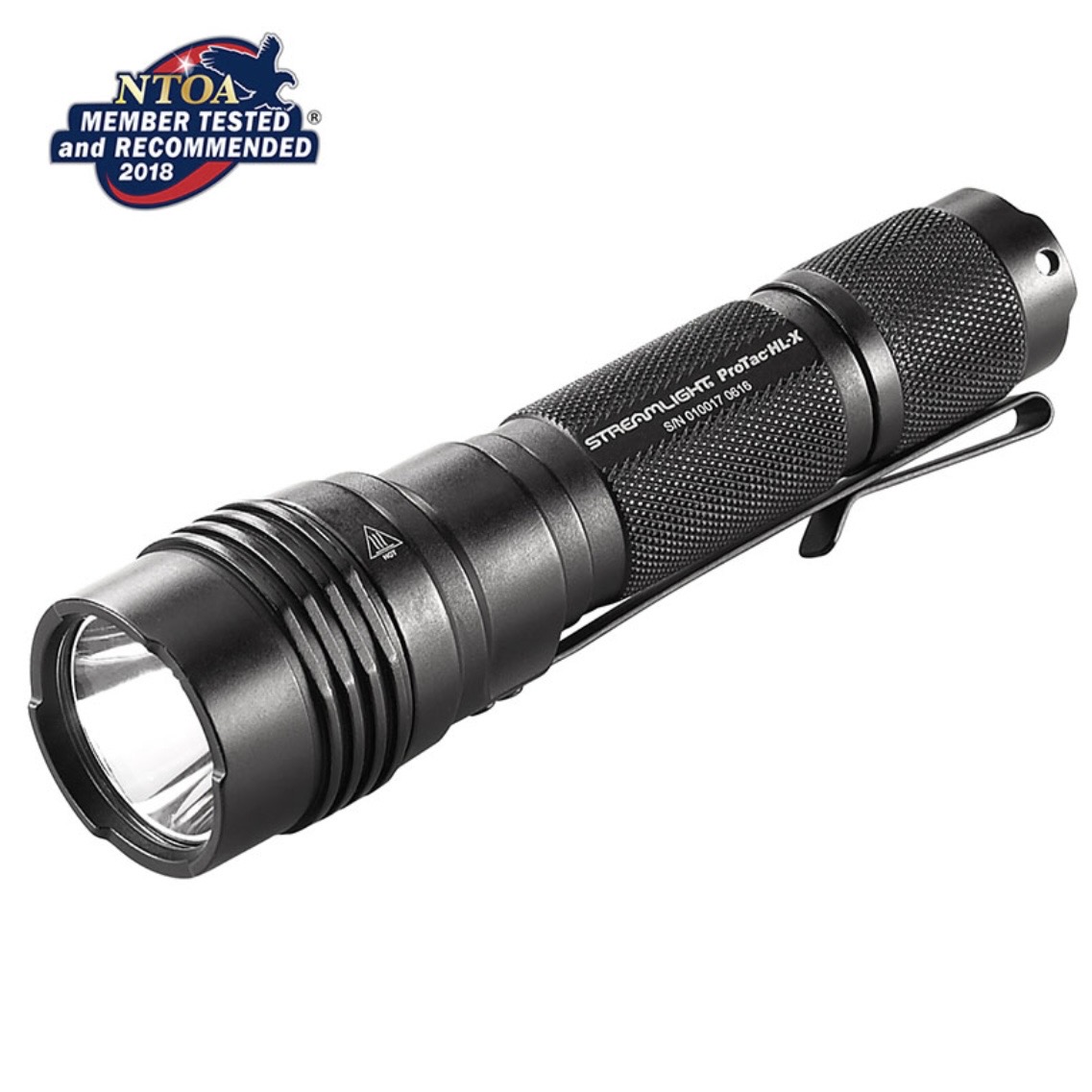

The handheld ProTac HL-X utilizes dual-fuel engineering. It can run on a single rechargeable lithium-ion pack or two standard disposable lithium batteries. Light output and operational runtimes adjust based on the selected cell type.

When using one Streamlight SL-B26 (or 18650) Lithium-Ion Rechargeable Battery:

• High Mode: 1,000 Lumens | 27,100 Candela | 330-meter beam distance | Runs 1.5 hours

• Medium Mode: 400 Lumens | 10,000 Candela | 200-meter beam distance | Runs 3.5 hours

• Low Mode: 65 Lumens | 1,600 Candela | 80-meter beam distance | Runs 23 hours

• Strobe Mode: Designed for signaling or tactical disorientation | Runs 3.25 hours

When using two standard CR123A Lithium Batteries:

• High Mode: 1,000 Lumens | 27,100 Candela | 330-meter beam distance | Runs 1.25 hours

• Medium Mode: 400 Lumens | 10,000 Candela | 200-meter beam distance | Runs 3 hours

• Low Mode: 65 Lumens | 1,600 Candela | 80-meter beam distance | Runs 20 hours

• Strobe Mode: Designed for signaling or tactical disorientation | Runs 2.5 hours

PHYSICAL DIMENSIONS AND WEIGHTS

• Length: 5.43 inches (13.79 cm)

• Head Diameter: 1.44 inches (3.66 cm)

• Barrel Diameter: 1.00 inch (2.54 cm)

• Weight with CR123A Batteries: 5.70 ounces (0.162 kg / 161.6 grams)

• Weight with SL-B26/18650 Battery: 6.20 ounces (0.176 kg / 175.8 grams)

CONSTRUCTION AND DURABILITY

• Body Material: 6000-series machined aircraft aluminum alloy with an abrasion-resistant Type II MIL-Spec anodized finish

• Lens Assembly: Gasket-sealed, high-temperature, shock-mounted AR-coated tempered glass lens

• Optics: Custom textbook smooth reflector optimized to cast a concentrated focal hotspot paired with extensive lateral peripheral spill

• Light Source: High-efficiency white LED, fully shock-impervious with a 50,000-hour operational lifetime

• Switch Mechanism: Multi-function, rubberized tactical tail cap push-button switch

• Switch Operation: Supports low-pressure soft-press momentary activation or heavy-click constant-on selection

• Waterproof Rating: Upgraded IP68 rated performance (dust-tight and fully waterproof up to 2 meters depth for 30 minutes continuous immersion)

• Impact Resistance: Standard drop-test certified up to 2 meters
